Detailed Description

A convenience base class implementation of OTVMediaDrmCallback.

This abstract class can be used as the base class in most bespoke implementations of OTVMediaDrmCallback for streaming Widevine- or PlayReady- encrypted streams while fetching the keys from a licence server.
For most licence servers, such as Nagra's Secure Service Platform (SSP) there is already an implementation provided with this SDK - see OTVHttpMediaDrmCallback.
An object of a class implementing OTVMediaDrmCallback) must be assigned to the player for playback of encrypted content.
The configuration of the object is done in the following stages:

In the constructor - the URL of the licence server is provided
Setting the Drm type, OTV_DRMTYPE_WIDEVINE or OTV_DRMTYPE_PLAYREADY. The default is OTV_DRMTYPE_WIDEVINE
Setting additional parameters in key-value pairs (properties and options)

The Properties key-value pairs define parameters that are passed to the licence server in the HTTP header. For example:
callback.setKeyRequestProperty("Content-Type", "application/octet-stream");
The Options key-value pairs define parameters that configure the DRM session, specific to the license server. These optional fields affect the construction of the key request challenge data in the OTVMediaDrmCallback#executeKeyRequest method. For example:
callback.setKeyRequestOption("protectedClientData", "someData");
The object should be configured prior to start of playback or setting the stream path, and then assigned to the OTVVideoView instance:
videoView.setMediaDrmCallback(callback);
Configuration may also be changed during playback.

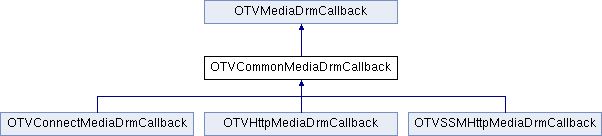

Inheritance diagram for OTVCommonMediaDrmCallback:

Public Member Functions
String	getDrmType ()
	Returns the DRM type the callback instance is configured for. More...

boolean	isMultiSession ()

byte[]	executeProvisionRequest (UUID uuid, ProvisionRequest request) throws MediaDrmCallbackException
	Executes a provisioning request. More...

void	setKeyRequestProperty (String name, String value)
	Sets a header for key requests made by the callback. More...

void	clearKeyRequestProperty (String name)
	Clears a specified header for key requests made by the callback. More...

void	clearAllKeyRequestProperties ()
	Clears all headers for key requests made by the callback. More...

void	setDrmType (String xDrmType)
	Set which DRM system to be used to play the stream. More...

void	setMultiSession (boolean xIsMultiSession)
	Set if the DRM system supports multiple sessions. More...

void	setKeyRequestOption (String name, String value)
	Sets an optional parameter for key requests. More...

void	clearKeyRequestOption (String name)
	Clears an option for key requests. More...

void	clearAllKeyRequestOptions ()
	Clears all options for key requests. More...

HashMap< String, String >	getKeyRequestOptions ()
	Gets options for key requests. More...

void	setDrmPropertyString (String name, String value)
	Sets a drm property. More...

void	clearAllDrmPropertyStrings ()
	Clears all properties for media drm. More...

HashMap< String, String >	getDrmPropertyStrings ()
	Gets properties for media drm. More...

void	setDrmPropertyByteArray (String name, byte[] value)
	Sets a drm byte array property. More...

void	clearAllDrmPropertyByteArray ()
	Clears all byte array properties for media drm. More...

HashMap< String, byte[]>	getDrmPropertyByteArray ()
	Gets byte array properties for media drm. More...

void	setMutualAuthentication (SSLSocketFactory xSslSocketFactory)
	Sets SSLSocketFactory for Mutual Authentication. More...

byte[]	executeProvisionRequest (UUID uuid, ExoMediaDrm.ProvisionRequest request) throws MediaDrmCallbackException
	Executes a provisioning request. More...

byte[]	executeKeyRequest (UUID uuid, ExoMediaDrm.KeyRequest request) throws MediaDrmCallbackException
	Executes a key request. More...

Public Attributes
String	OTV_DRMTYPE_WIDEVINE = "Widevine"
	Defined DRM type for Widevine. More...

String	OTV_DRMTYPE_PLAYREADY = "PlayReady"
	Define DRM type for PlayReady. More...

String	OTV_DRMTYPE_CONNECT = "Connect"
	Define DRM type for Connect. More...

String	OTV_DRMTYPE_WISEPLAY = "Wiseplay"
	Define DRM type for Connect. More...

Protected Member Functions
	OTVCommonMediaDrmCallback (String defaultLicenseUrl)

byte[]	executePost (String url, byte[] data, Map< String, String > requestProperties) throws IOException
	A utility for synchronously sending a `POST` HTTP message. More...

MediaDrmCallbackException	generateDrmCBException (@NonNull IOException exception)
	Helper method to generate MediaDrmCallbackException with IOException. More...

Constructor & Destructor Documentation

OTVCommonMediaDrmCallback ( String defaultLicenseUrl )

protected

Parameters

defaultLicenseUrl The default license URL. Used for key requests that do not specify their own license URL.

Member Function Documentation

void clearAllDrmPropertyByteArray ( )

Clears all byte array properties for media drm.

void clearAllDrmPropertyStrings ( )

Clears all properties for media drm.

void clearAllKeyRequestOptions ( )

Clears all options for key requests.

void clearAllKeyRequestProperties ( )

Clears all headers for key requests made by the callback.

void clearKeyRequestOption ( String name )

Clears an option for key requests.

Parameters

name	The name of the option.

void clearKeyRequestProperty ( String name )

Clears a specified header for key requests made by the callback.

Parameters

name	The name of the specified header field.

byte [] executeKeyRequest	(	UUID	uuid,
		ExoMediaDrm.KeyRequest	request
	)		throws MediaDrmCallbackException

inherited

Executes a key request.

Parameters

uuid	The UUID of the content protection scheme.12
request	The request.

Returns: The response data.

Exceptions

MediaDrmCallbackException If an error occurred executing the request.

Implemented in OTVConnectMediaDrmCallback.

byte [] executePost	(	String	url,
		byte[]	data,
		Map< String, String >	requestProperties
	)		throws IOException

protected

A utility for synchronously sending a POST HTTP message.

Used for requesting the licence via HTTP/HTTPS. Can be overridden if special operations are required.

Parameters

url	The URL address to post to.
data	Optional additional data to send with the POST message.
requestProperties	A map of key-value HTTP header entries to use in the message

Exceptions

IOException If an error occurred executing the request.

byte [] executeProvisionRequest	(	UUID	uuid,
		ExoMediaDrm.ProvisionRequest	request
	)		throws MediaDrmCallbackException

inherited

Executes a provisioning request.

Parameters

uuid	The UUID of the content protection scheme.
request	The request.

Returns: The response data.

Exceptions

MediaDrmCallbackException If an error occurred executing the request.

Implemented in OTVConnectMediaDrmCallback.

byte [] executeProvisionRequest	(	UUID	uuid,
		ProvisionRequest	request
	)		throws MediaDrmCallbackException

Executes a provisioning request.

Parameters

uuid	The UUID of the content protection scheme.
request	The request.

Returns: The response data.

Exceptions

MediaDrmCallbackException If an error occurred executing the request.

MediaDrmCallbackException generateDrmCBException ( @NonNull IOException exception )

protected

Helper method to generate MediaDrmCallbackException with IOException.

Parameters

exception the IOException

Returns: a MediaDrmCallbackException object

HashMap<String, byte[]> getDrmPropertyByteArray ( )

Gets byte array properties for media drm.

The default value is null.

Returns: all drm byte array properties.

Implements OTVMediaDrmCallback.

HashMap<String, String> getDrmPropertyStrings ( )

Gets properties for media drm.

The default value is null.

Returns: all drm properties.

Implements OTVMediaDrmCallback.

String getDrmType ( )

Returns the DRM type the callback instance is configured for.

Implements OTVMediaDrmCallback.

HashMap<String, String> getKeyRequestOptions ( )

Gets options for key requests.

Returns: all key request options.

Implements OTVMediaDrmCallback.

boolean isMultiSession ( )

Returns: false if the DRM system does not support multiple sessions, otherwise return true.

Implements OTVMediaDrmCallback.

void setDrmPropertyByteArray	(	String	name,
		byte[]	value
	)

Sets a drm byte array property.

Parameters

name	The name of the property.
value	The value of the byte array property.

void setDrmPropertyString	(	String	name,
		String	value
	)

Sets a drm property.

Parameters

name	The name of the property.
value	The value of the property.

void setDrmType ( String xDrmType )

Set which DRM system to be used to play the stream.

If not explicitly set, the default is OTV_DRMTYPE_WIDEVINE.

Parameters

xDrmType "Widevine" , "PlayReady" , "Connect" or "Wiseplay"

void setKeyRequestOption	(	String	name,
		String	value
	)

Sets an optional parameter for key requests.

Parameters

name	The name of the option.
value	The value of the option.

void setKeyRequestProperty	(	String	name,
		String	value
	)

Sets a header for key requests made by the callback.

Parameters

name	The name of the header field.
value	The value of the field.

void setMultiSession ( boolean xIsMultiSession )

Set if the DRM system supports multiple sessions.

If not explicitly set, the default is false.

Parameters

xIsMultiSession true if the DRM system should support multiple sessions.

void setMutualAuthentication ( SSLSocketFactory xSslSocketFactory )

Sets SSLSocketFactory for Mutual Authentication.

Parameters

xSslSocketFactory SSLSocketFactory instance

Member Data Documentation

String OTV_DRMTYPE_CONNECT = "Connect"

inherited

Define DRM type for Connect.

String OTV_DRMTYPE_PLAYREADY = "PlayReady"

inherited

Define DRM type for PlayReady.

String OTV_DRMTYPE_WIDEVINE = "Widevine"

inherited

Defined DRM type for Widevine.

String OTV_DRMTYPE_WISEPLAY = "Wiseplay"

inherited

Define DRM type for Connect.
